Easton Half-Out 5MM Inserts give your carbon shafts increased weight, length, and strength.
For better penetration, the inserts Increase your FOC (front of center) weight. The steel and aluminum models offer more strength and protection for your carbon arrows which saves you money and extends the life of your arrows.
Easton Half-Out 5MM Inserts fit .204" micro diameter arrows, and taper out to a 5/16" diameter for a flush fit with 5/16" points and broadheads. Measure approximately 1-3/8" long. Half-Out Inserts extend approximately 1/2" from the arrow shaft.

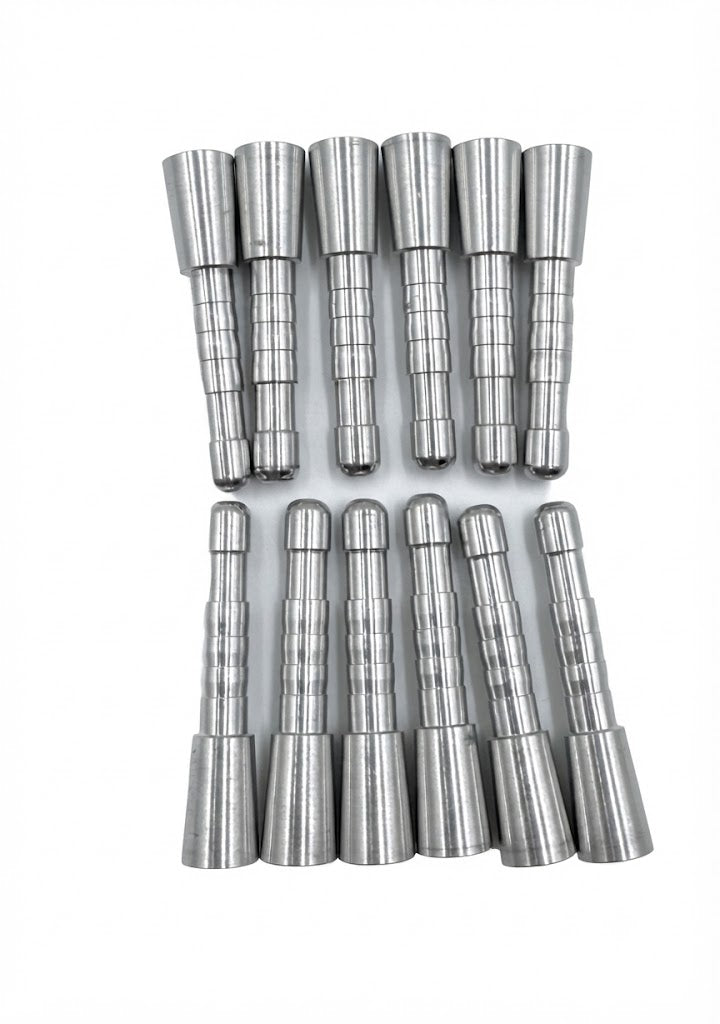

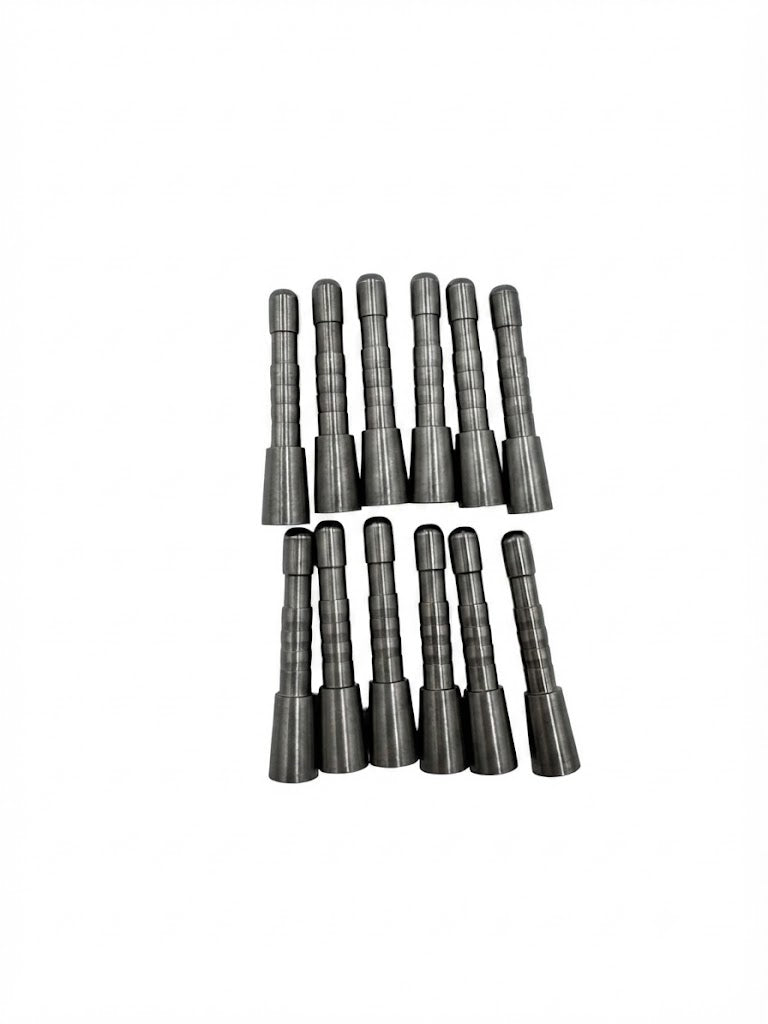

Easton Half-Out 5MM Inserts are available in 25 grain aluminum or 75 grain steel, and in #1 and #2 models. See below chart for which models fit which shafts
| Size |
Arrow |
| #1 |
Traditional Only Barebow: 700, 600, 500
Axis Traditional: 500, 600
Full Metal Jacket: 500 |
| #2 |
Traditional Only Barebow: 400, 340, 300, 260
Axis Traditional: 400, 340
Full Metal Jacket: 400, 340, 300 |

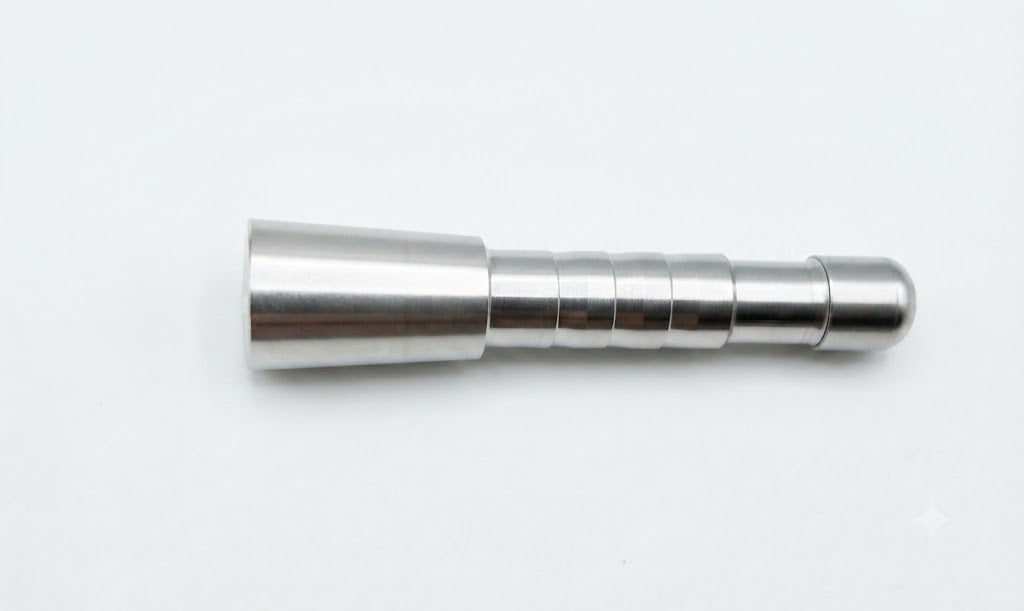

Aluminum Half-Out Specifications:
- 8-32 Thread
- 25 grains
- 7075-T6 Alloy
- Packaged per dozen
- Exposed length is 0.487"

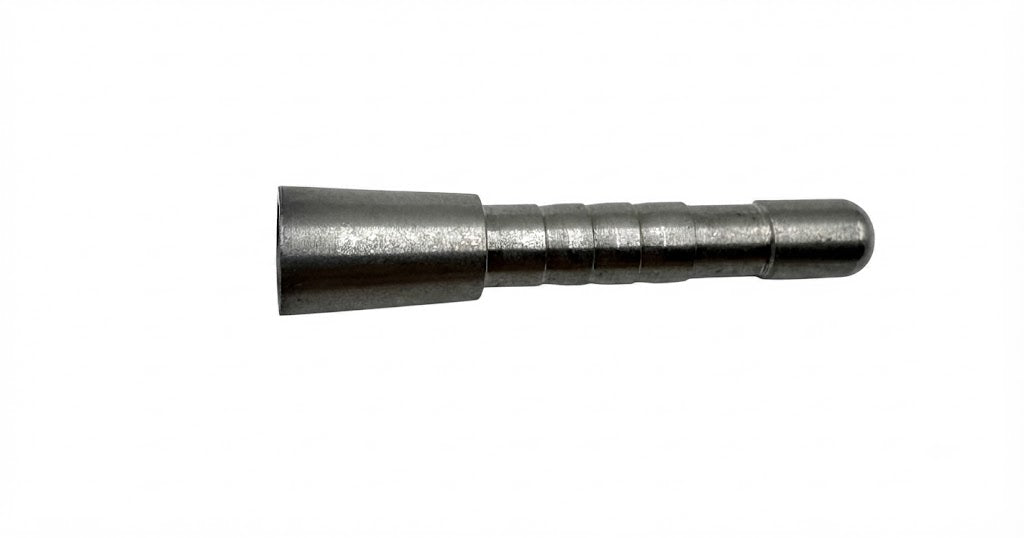

Stainless Steel Half-Out Specifications:
- 8-32 Thread
- 75 Grains
- 416 Stainless Steel
- Packaged per dozen
- Exposed length is 0.487"
